AWS A5.18 ER70S-6

Sub-micron tolerance. Zero-tangle feeding.

Engineered for robotic welding cells and high-volume fabrication. Vanguard solid wire eliminates micro-stoppages with guaranteed cast and helix tolerances.

0.1μm

Coating Tolerance

100%

Spool Precision

Technical Data

AWS Compliance Specifications

Verified chemical composition and mechanical properties engineered to exceed AWS standards for high-deposition robotic welding.

Chemical Composition

Mechanical Properties

Carbon: 0.06–0.15% | Manganese: 1.40–1.85% | Silicon: 0.80–1.15% | Copper Coating: sub-micron thickness engineered to prevent contact tip wear.

Yield Strength: ≥ 400 MPa | Tensile Strength: ≥ 480 MPa | Elongation: ≥ 22% | Charpy V-Notch Impact: ≥ 27 J at -30°C.

Supply Formats

Precision Packaging Options

Available in multiple configurations optimized for continuous feeding in automated robotic cells and heavy manual fabrication lines.

Precision Spools

Bulk Drums

Custom Supply

Layer-by-layer wound 33lb and 44lb wire spools with guaranteed zero-tangle cast and helix tolerances.

High-capacity 500lb and 1000lb drums engineered for continuous, high-deposition robotic welding cells.

Tailored packaging formats and contract drawing runs to match specific high-volume production requirements.

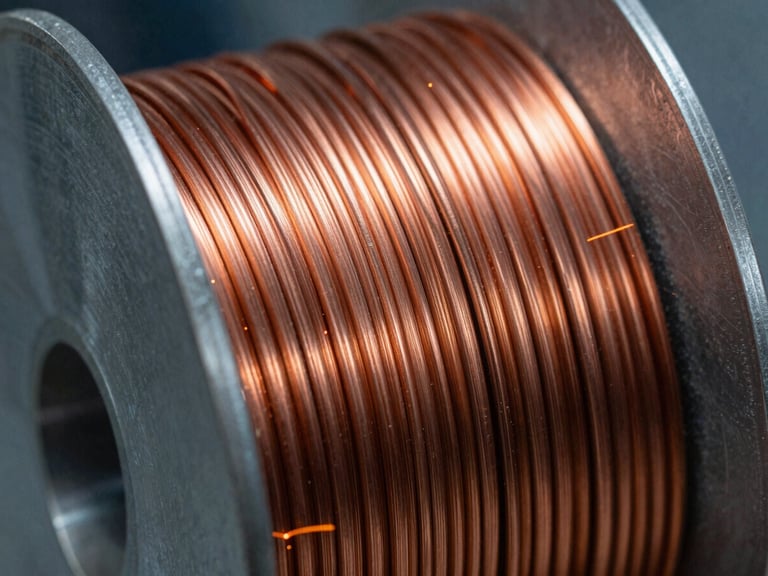

Macro close-up of a copper-coated MIG wire spool, showing the perfect layer-by-layer winding and metallic sheen under sharp industrial lighting.
Macro close-up of a copper-coated MIG wire spool, showing the perfect layer-by-layer winding and metallic sheen under sharp industrial lighting.
Download Spec Sheet
Technical Resources

Access Certified Data Sheets

Download complete AWS certificates of compliance, metallurgical test reports, and detailed mechanical specification sheets for your procurement records.
